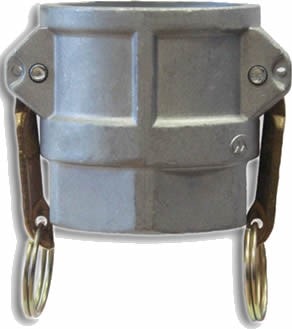

Aluminum camlock coupler Type D

Type D cam & groove couplers,are often used with Type A adapters, and sometimes be used with Type E & F and Type DP (Dust Plug) of the same size. Aluminum couplers are accompanied by brass handles and rings for long service expectancy.Type Daluminium Camlock coupler ranges from 1/2" to 8" according to MIL-C-27487/ISO A-A-59326.Aluminum camlock fittings have good abrasion, chemical resistance as well as lightweight, high strength and competitive cost. These quick hose couplings are often used with PVC suction hose, rubber suction hoses and milling hoses for the delivery of water, petroleum & fuels and slurry.Remark:No camlock coupling is suitable for compressed air or steam applications.

Product description:

• Body material: aluminum alloy.

• Handle & rings: brass.

• Size: 1/2" to 8".

• Standard: MIL-C-27487/ISO A-A-59326.

• Working pressure: no more than 250psi (depends on size and temperature).

Aluminum Camlock Coupling Operating Pressure

Sr.No	Size	Working Pressure
1	1/2" to 2"	250psi
2	2-1/2" to 4"	150psi
3	5" and 6"	75psi
4	8"	50psi

Aluminum Camlock Coupler Type D

Sr.no	Size(inch)	1/2	3/4	1	1*1/4	1*1/2	2	2*1/2	3	4	5	6	8
1	A-Overall length (inch)	2	2*5/32	2*4/7	2*23/32	2*27/32	3*5/16	3*3/8	3*5/8	3*13/16	3*3/4	4*11/32	5*27/32
2	B-Adapter length (inch)	1*11/32	1*1/4	1*9/16	1*13/16	1*13/16	2*7/32	2*11/32	2*5/16	2*5/16	2*5/16	2*5/8	3*13/16
3	E-hose shank OD	1*1/16	1*9/32	1*19/32	2*1/32	2*3/16	2*5/8	3*7/32	3*7/8	4*7/8	6*9/16	7*21/32	10*1/1
