We are one of the leading stockists and manufacturers of stainless steel hose fittings, tube fittings and adaptors. We are providing quality assurance for our products to customers. We have one of most comprehensive collection of high quality, stainless steel hose and tube fittings, and we also maintain high stock levels of raw materials and finished products to ensure your needs are met with a speedy delivery. We make fittings of all kinds: Steel, Stainless, Brass, Aluminum and Steel fittings with different type of coating. We specialize in all types and sizes, including Metric fittings. We have an extensive stock of metric items, and our expert sales people will give you the help you need to find the parts that will solve your problem. We also offer special custom made fittings, short run items, and large volume production. From the special feature from Ishani Engineers , you can get help from highly experienced engineer to design custom made fittings as per your requirement .

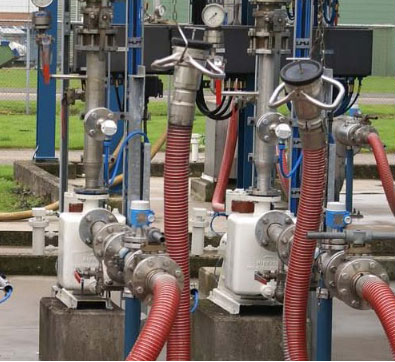

Quick Release coupling specially designs for the highly chemical area , high humidity area to transfer the gas and hydraulic media.coating designed to protect equipment against extreme corrosion caused by chemical exposure.

Application:
Chemical Industry, Oil and Gas Refinery, Gas lines, High pressure Gas line

Key Feacture:
Chemical resists, Corrosion resists surface, Especially designed to resist sulfuric acid, Protects surfaces from extreme chemical attack

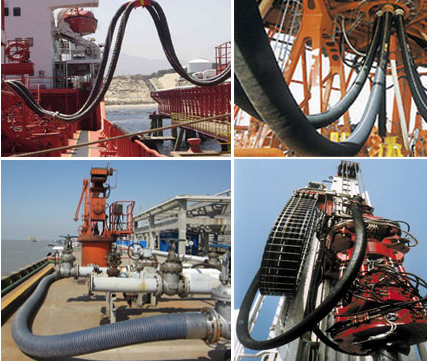

Quick release coupling design for the General Purpose in Chemical Industry, Oil and Gas Refinery to transfer the gas and hydraulic media.

Application:
Oil and Gas Refinery, Gas lines, High pressure Gas line, Industrial Air Line, Pneumatic instrument, Water Flow Connection

Key Feacture:
Corrosion resists, 360Valve contact for high accuracy, Easy to connect, Min Ball harness 86 HR 15N

Type Available:
Both Size NRV type Valve QRC, Without Valve Type QRC

Material Available:
Brass, Stainless Steel, Carbon Steel

ISHANI ENGINEERS, Engineers are the leading manufacturer of Aluminium Type of Camlock. These aluminium cam and groove couplings are stocked in sizes 1/2-6 inch, with special sizes obtainable by request. Aluminum camlock couplings or aluminum cam & groove couplings are an economical and durable option for quick connect/disconnect coupling for PVC suction hoses, industrial hoses and PVC layflat hoses used in agricultural irrigation, water transfer of construction and industries, and chemical & petroleum delivery. Its working temperature ranges from -150 F to +250 F (-101 C to 121 C) and working pressure doesn't surpass 250psi at ambient temperature. Aluminum camlock fittings come in a variety of sizes ranging from 1/2" to 8" according to MIL-C-27487/ISO A-A-59326. 1/2" through 4" and 6" parts are interchangeable, while 5" and 8" through 12" are not interchangeable for no standards are established for these specifications. Our aluminium quick connect/disconnect couplings are manufactured by gravity casting.

Stainless steel camlock coupling has a wide application in food or sanitary environments & highly corrosive applications. It effectively prevents contamination of product to be transported. Our stainless steel camlocks are manufactured by SS 316 which will keep lustrous appearance even it has experienced long usage. Stainless steel camlock fittings comes into Type A, B, C, D, E, F, DC & DP with sizes ranging from 1/2" to 8". They are manufactured according to MIL C 27487 (A-A-59326). These couplers & adapters are interchangeable except 1/2" and 8" which have no international standards.Handles (cam arms) and finger rings are made of stainless steel 304. Standard gaskets for stainless steel camlock couplings are black Buna-N. EPDM, Viton, PTFE & Neoprene gaskets are also supplied for higher working pressure. Always make sure the material is compatible with the liquids or powders to be delivered.Stainless steel cam locks are ideal for use with salt water, water waste and many chemicals & can also be used with hydraulic oil and coolants.

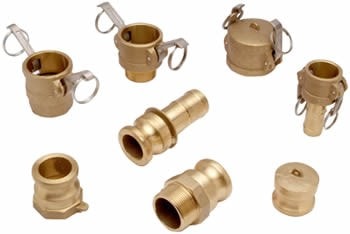

Brass Camlock couplings, made of 100% virgin materials, have excellent corrosive resistance against water, hydraulic oil, coolants, gasoline and petroleum products. Thanks to its non-sparking feature, brass camlocks can be used in some special places such as in marine fuelling applications. Brass cam lock fittings come into size from 1/2" to 8". The fittings are interchangeable except 1/2" and 8", which have no international specifications. Generally speaking, the usual working temperature for brass couplings is rated from 150.Both brass and stainless steel camlock fittings have good corrosive resistance, high tensile strength and durability. However, brass coupling is less expensive than stainless steel, and softer and easier to thread.Application: Brass camlocks are normally used in low pressure suction or discharge hoses of pump, tank, IBC and other places where quick connect/disconnect is necessary like paints & inks industry. Before installation, always make sure the material is compatible with the media.

Stainless steel camlock assembly Stainless steel camlock assembly contains ring, handle (cam arm) and pin. Suitable for polypropylene and stainless steel 316 camlocks.Stainless steel handles & ringsStainless steel camlock assembly consists of a pin, a handle (cam arm) and a pin.This assembly is used with stainless steel or polypropylene camlock fittings. It is suitable for beverage, food & sanitary applications. Handles Size: 1/2", 3/4", 1", 1 1/2", 2", 2 1/2", 3", 4", 5" & 6". Pull rings are fitted to all sizes.Brass Camlock Assembly - Brass camlock assembly contains a handle or cam arm, a pin and a finger ring. Available for aluminum, brass and polypropylene camlocks.

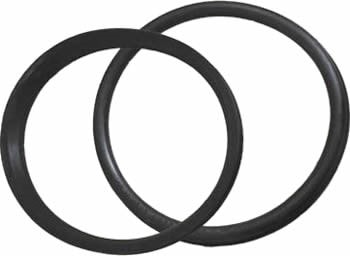

Buna N Gaskets are standard gaskets for hose Camlock couplings. They are compatible with acids, alkaline, oils and petroleum products.Buna N gaskets, also named Nitrile Rubber gaskets, are considered as standard camlock gaskets. They are resistant to gasoline, coolants, water, petroleum products, vegetable oils, mineral oils hydraulic fluids and ordinary diluted acids and alkaline.Before the usage, you should make sure the gasket is not broken and be compatible with the media.

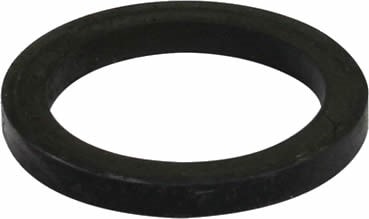

EPDM gaskets are ideal for aluminum, stainless steel, brass, nylon and polypropylene camlock couplings. Good chemical resistance and weather resistant.EPDM gaskets are often used as sealing gaskets for camlock couplings including aluminum, stainless steel, brass, nylon and polypropylene. Gaskets play a vital role in maintaining sealing function.The main property of EPDM gaskets are its great compatibility with hydraulic fluids, ketones, hot & cold water and alkalis, agriculture fertilizer and other solvents. In addition, it has outstanding resistance against heat, ozone & weathers. This ensures EPDM gaskets durability and good performance

Viton camlock gaskets are suitable for most applications such as paints & dyes, agriculture, cosmetic industry and petroleum industry where camlock couplings are necessary.Viton camlock gaskets are chemically inert to most chemicals even in the toughest corrosive conditions. Its flexibility results in an excellent sealing gasket structure.Viton gaskets with cam lock couplings provide a superior seal for any liquid transfer in manufacturing, distribution and storage. It is extensively used by chemical, cosmetic industry, petroleum industry, paints & dyes and agriculture fertilizer transportation.

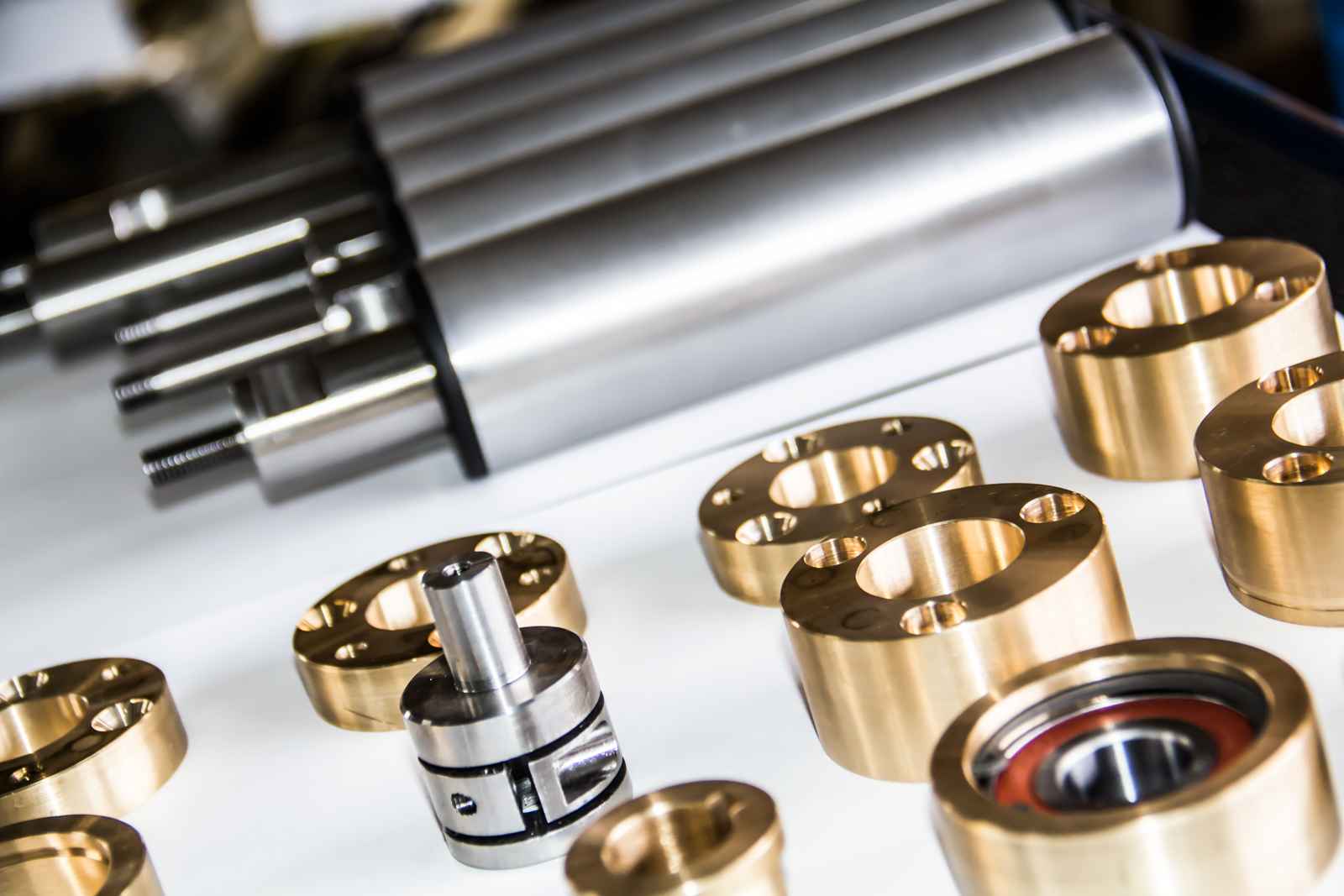

CNC Turned Parts We are one of the reliable CNC Turned Parts manufacturer and exporter from India. Our company manufacture turned parts from various materials like stainless steel, aluminium, carbon steel & copper alloy etc. CNC Turned Parts offered by our company possess high degree of accuracy and repeatability. We are well equipped with innovative technology for the products of excellent quality parts for various industries for their various features and wide application area. We execute customized orders for our local and overseas clients as per their specifications at very competitive price.

CNC Machined Parts We are one of the reliable CNC Machined Parts manufacturer and exporter from India. Our company manufacture turned parts from various materials like stainless steel, aluminium, carbon steel & copper alloy etc. CNC Machined Parts offered by our company possess high degree of accuracy and repeatability. We are well equipped with innovative technology for the products of excellent quality parts for various industries for their various features and wide application area. We execute customized orders for our local and overseas clients as per their specifications at very competitive price.

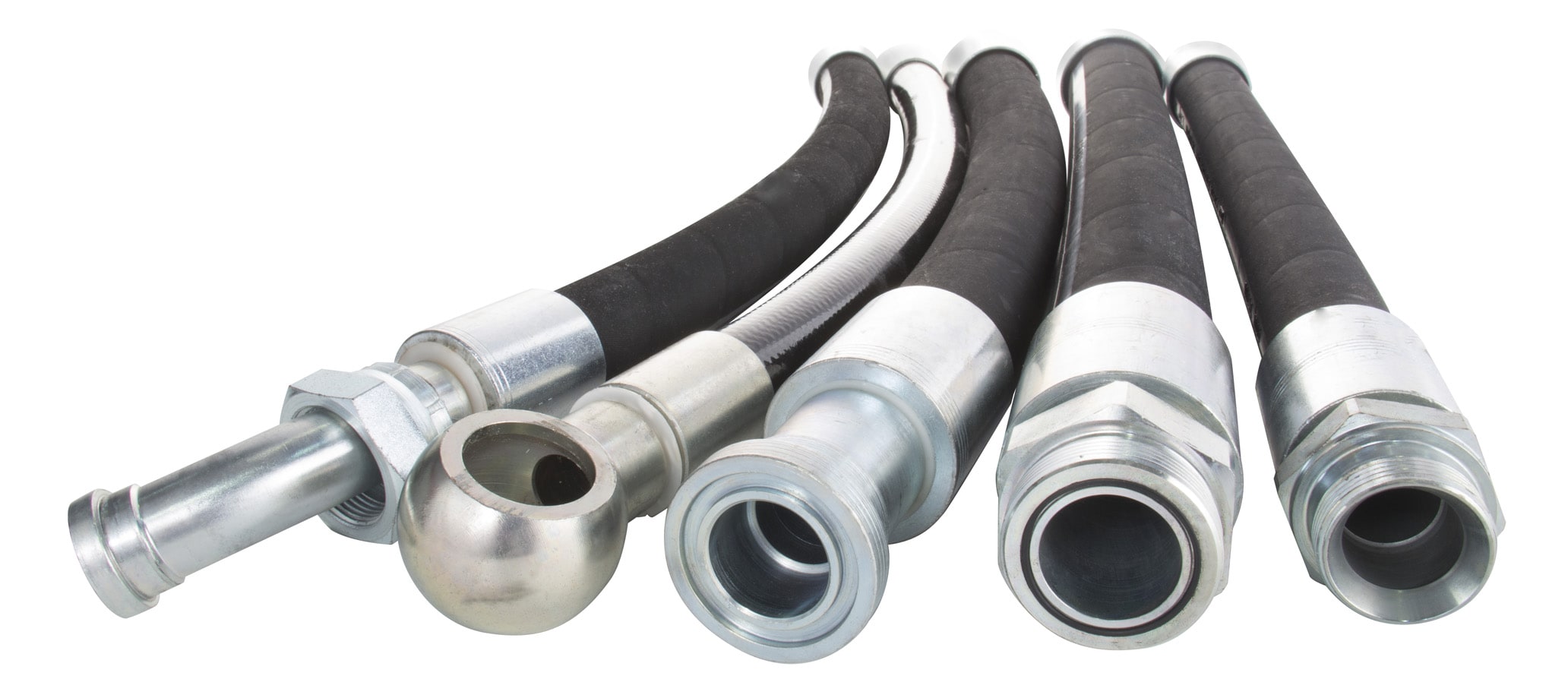

Our core products are hydraulic hoses of different sizes and types, including high pressure hydraulic hose, medium pressure hose, low pressure hose, high-temperature hose, wire-braid hydraulic hose, spiral wire hydraulic hose, thermoplastic hydraulic hose and so on. They are widely used in agriculture, construction, coal mining industry, machinery, garden industry, automobile industry, and petroleum fields. All the products are produced according to the international standards ISO 9001 and conform to such standards as EN, DIN,and SAE . So the products are sold well in more than 20 countries and regions with good reputation. Our company aims to meet every customers quality requirements and seek long term partnership with enterprises in INDIA and companies of other countries and regions such as America, Europe, Africa, Japan and so on.

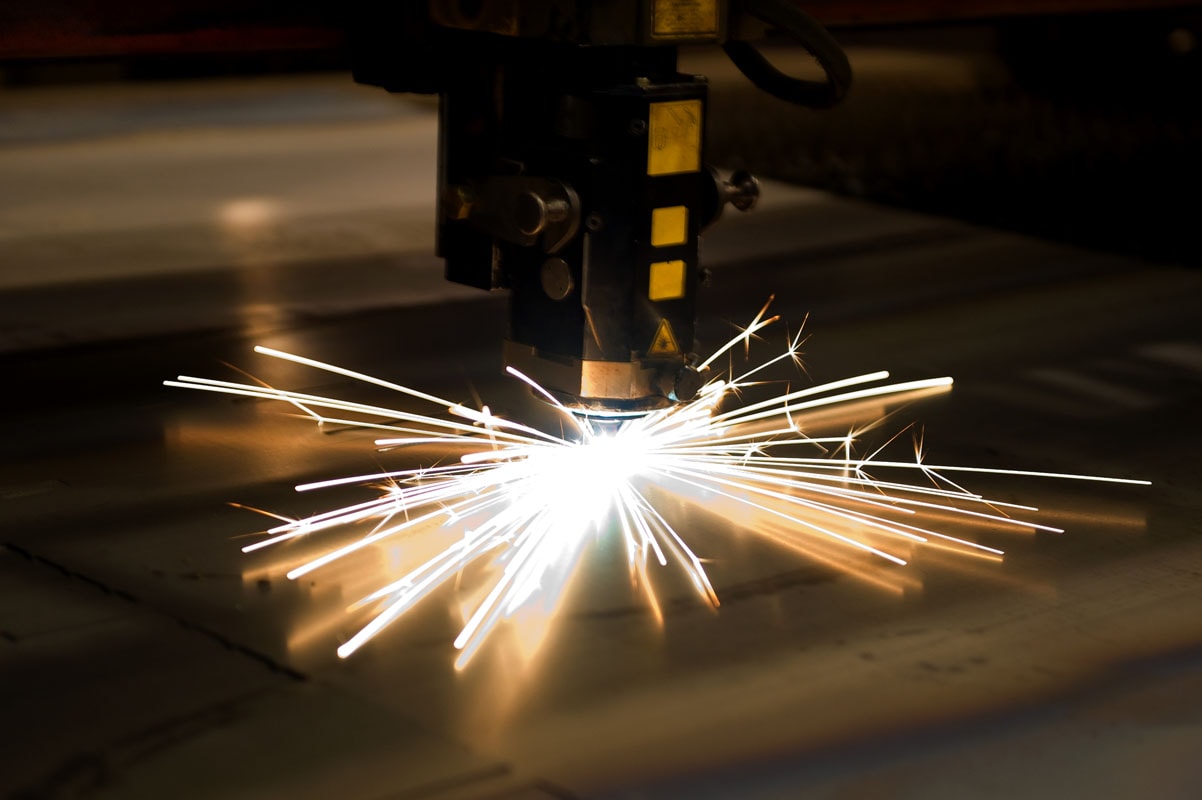

Laser cutting provides our customers with the following advantages: Consistent intricate and accurate shapes Finished Product - no additional machining needed Minimal wastage No set up costs Minimal heat input Rapid cost effective prototyping Suitable for Stainless Steel (up to 8mm), Mild Steel (up to 12mm), etc.
