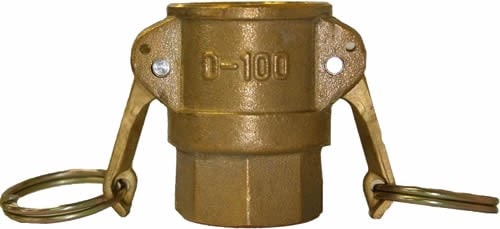

Brass Camlock Type D

Brass camlock coupler Part D Female Coupler by Female NPT, is usually used with Part A, E, F & DP adapters of the identical diameter. Part D coupler comes into size from 1/2 inch to 8 inch. Besides 1/2" and 8", other sizes are interchangeable for they are manufactured by international standards MIL-C-27487 (A-A-59326).Quick camlock hose coupling simplify connection/disconnection betweenhoses to pumps, tanks and equipment. You can use hand pressure to complete the sealing process. Click here to know more information of installing camlock fittings.

Features:

• Good corrosive resistance.

• No-sparking.

• Durable & strong.

• No tools needed.

• Cheaper than stainless steel coupling.

Brass Cam & Groove Coupling Working Pressure

Sr.No	Material	Brass
1	1/2"	250psi
2	3*4"	250psi
3	1"	250psi
4	1*1/4"	250psi
5	1*1/2"	250psi
6	2"	250psi
7	2*1/2"	150psi
8	3"	125psi
9	4"	100psi
10	5"-6"	75psi
11	8"	50psi

Product description:

• Item: Part D Coupler Female coupler by female NPT

• Body material: 100% brass

• Handles & pins: 100% brass

• Gaskets: Buna-N, EPDM, PTFE, silicone

• Thread: NPT/BSP

• Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2",2 1/2", 3", 4", 5", 6" & 8"

• Working pressure: no more than 250 psi

• Temperature range: -150 F to +450 F (-101 C to + 232 C)

Brass Camlock Adapter Type D

Sr.no	Size(inch)	1/2	3/4	1	1*1/4	1*1/2	2	2*1/2	3	4	5	6	8
1	Overall length (inch)	2	2*5/32	2*4/7	2*23/32	2*27/32	3*5/16	3*3/8	3*5/8	3*13/16	3*3/4	4*11/32	5*27/32
2	Coupler length (inch)	1*11/32	1*1/4	1*9/16	1*13/16	1*13/16	2*7/32	2*11/32	2*5/16	2*5/16	2*5/16	2*5/8	3*13/16
3	Distance across flats(inch)	1*17/32	2*1/8	2*7/16	3*3/8	3*9/16	3*15/16	4*5/8	5*15/32	6*9/16	7*9/16	10*3/32	12*1/32
4	Distance across open cam arms(inch)	2*5/8	4*5/16	5*3/16	7*7/16	7*5/8	8*1/32	8*9/16	10*3/32	11*3/16	12*3/16	16*1/4	19*31/32
5	Hose shank OD	1*1/16	1*9/32	1*19/32	2*1/32	2*3/16	2*5/8	3*7/32	3*7/8	4*7/8	6*9/16	7*21/32	10*1/1
