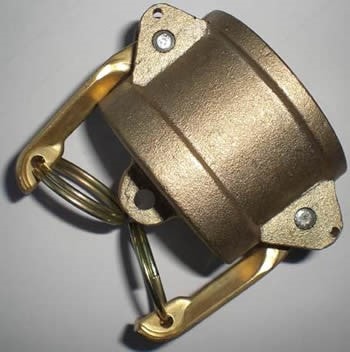

Brass Camlock Type Dust Cap

Stainless steel
Brass camlock female end coupler Part DC is typically used with Part A, E & F adapters of the identical size. A complete camlock coupling consists of a coupler and an adapter. You just need insert the adapter to the related coupler and put down the arms when the adapter contacting with the gasket. Then the sealing is finished.Brass cam & groove couplings have good corrosive resistance to water, coolants, hydraulic oils, petroleum products and other corrosive liquids. Due to its non-sparking feature, it is often used in marine fuelling system. It is a premium choice for quick hose couplings for it is not only durable & strong, but also a little cheaper than stainless steel.

Features:

• Good corrosive resistance.

• No tools needed.

• Durable & strong.

• No-sparking.

• Cheaper than stainless steel.

Brass Cam & Groove Coupling Working Pressure


Sr.NoMaterialBrass
11/2"250psi
23*4"250psi
31"250psi
41*1/4"250psi
51*1/2"250psi
62"250psi
72*1/2"150psi
83"125psi
94"100psi
105"-6"75psi
118"50psi

Product description:

• Item: Brass Camlock Coupler DC

• Body material: 100% brass

• Handles & pins: 100% brass

• Gaskets: Buna-N, EPDM, PTFE, silicone

• Type: A, B, C, D, E, F, DC & DP

• Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2",2 1/2", 3", 4", 5", 6" & 8"

• Working pressure: no more than 250 psi

• Temperature range: -150 F to +450 F (-101 C to + 232 C)


Brass Camlock Adapter Type Dust Cap


Sr.noSize(inch)1/23/411*1/222*1/234568
1Overall length (inch)4*29/322*1/162*1/32*11/1632*5/83*1/83*21/323*1/23*3/165*4/9
2Adapter length (inch)1*7/321*3/81*21/321*13/162*7/322*5/322*1/42*5/162*5/162*5/83*13/36
3Distance across closed cam arms(inch)1*17/322*1/82*7/163*9/163*15/164*5/85*15/326*9/167*9/1610*3/3212*1/32
4Distance across open cam arms(inch)2*5/84*5/165*3/167*5/88*1/328*9/1610*3/3211*3/1612*3/1616*1/419*31/32
