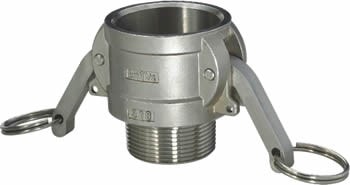

Stainless steel camlock Type B

Type B stainless steel camlock,female coupler by male thread, can fits into any male camlock fitting of the same size including Type F, A, E & DP (Dust Plug). Quick hose camlock couplings can connect/disconnect hose to tanks, pumps or other equipment in a faster way in contrast with conventional fitting such as threads and flanges.Owing to its excellent corrosive resistance, high temperature ability and sanitary features, stainless steel camlock fittings are often used in food processing and harsh working environments. Stainless steel couplings will not act with seawater, coolants, fuels and foods in liquid or powder status. Available in 1/2" to 6". 3/4" to 6" Type B couplers are interchangeable except 1/2" which has no international specifications.Female Coupler by Male BSPT Thread - The "B" type camlocks have a female camlock end and a male BSP thread of the same size. The female camlock end fits into any male camlock fitting of the same size. Available in sizes 3/4" through 4", Precisely manufactured for accurate fit, No tools needed, Working pressure up to 10 bar.Type B Couplers are typically used with Type F Adapters but can also be used with Type A and E Adapters and DP (Dust Plug) of the same size.Camlock Couplings are in fact, a means of quick engaging of disengaging a hose connection from a system requiring transfer of fluid or gas.

Feature:

• Ideal for food & sanitary conditions.

• High corrosive resistance.

• Extremely high working temperature.

• No extra tools needed.

• Harder than brass.

• Long service life.

Stainless Steel Coupling Operating Pressure

Sr.No	Size	Working Pressure
1	1/2"	150psi
2	3/4" to 2"	250psi
3	2*1/2"	225psi
4	3"	200psi
5	4",5"&6"	100psi

Product description:

• Body Material: stainless steel 316.

• Gaskets: Buna-N, EPDM, PTFE & food grade silicone gasket.

• Size: 1/2" to 6".

• Thread: NPT, BSPP, BSPT.

• Working pressure: no more than 250 psi.

• Temperature range: -150 F to +500 F (-101 C to +260 C)

• Standard: MIL-C-27487 (A-A-59326)

Stainless Steel Camlock Coupler B

Sr.no	Size(inch)	1/2	3/4	1	1*1/4	1*1/2	2	2*1/2	3	4	6
1	A-Overall length (inch)	2	2*1/8	2*9/16	2*27/32	2*31/32	3*9/32	3*7/16	3*19/32	4	4*17/32
2	B-Adapter length (inch)	1*7/32	1*1/4	1*1/4	1*29/32	1*29/32	2*7/32	2*1/4	2*3/8	2*9/32	2*19/32
3	Distance across closed cam arms	1*7/32	2*1/8	2*1/8	3*1/4	3*1/4	3*15/16	4*7/16	5*15/32	5*15/32	10*3/32
4	Distance across open cam arms	2*5/8	4*5/16	4*5/16	7*5/32	7*5/32	7*7/16	8*11/32	9*15/16	11*1/32	16*1/4
