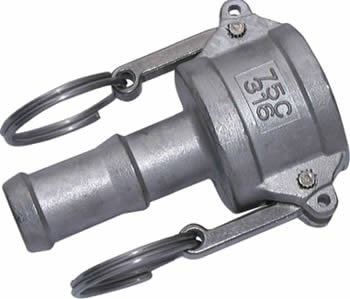

Stainless steel camlock Type C

Type C stainless steel camlock,Female coupler by hose tail, are normally used with Type E, A, F and DP (Dust Plugs) of the same size. Available in 1/2 through 6.Stainless steel coupling consists of two components coupler and adapter. Insert the adaptor into the coupler and when the adaptor contact with the sealing gaskets, put down the arms. The whole sealing process is quite easy and cost you less time.Compared with other metal camlocks, stainless steel cam & groove couplings are the priority option for food or sanitary environments or harsh conditions. Stainless steel 316 has outstanding corrosive resistance, high temperature stability and sanitary character.

Product description:

• Body material: stainless steel 316.

• Handles & pins: stainless steel 304.

• Gaskets: Buna-N, EPDM, PTFE & food grade silicone gasket.

• Size: 1/2 to 6.

• Thread: NPT, BSPP, BSPT.

• Working pressure: no more than 250 psi.

• Temperature range: -150 F to +500 F (-101 C to +260 C).

Stainless Steel Coupling Operating Pressure

Sr.No	Size	Working Pressure
1	1/2"	150psi
2	3/4" to 2"	250psi
3	2*1/2"	225psi
4	3"	200psi
5	4",5"&6"	100psi

Stainless Steel Camlock Coupler C

Sr.no	Size(inch)	1/2	3/4	1	1*1/4	1*1/2	2	2*1/2	3	4	5	6
1	A-Overall length (inch)	3*7/32	3*11/16	4*1/2	4*5/8	4*13/16	5*19/32	6*1/16	6*7/16	6*17/32	7*3/8	8*11/16
2	B-Adapter length (inch)	1*7/32	1*1/4	1*9/16	1*29/32	1*29/32	2*7/32	2*1/4	2*1/4	2*9/32	2*7/16	2*19/32
3	Distance across closed cam arms	1*17/32	2*1/8	2*7/16	3*1/4	3*1/4	3*15/16	5*15/32	5*15/32	5*15/32	7*9/16	10*3/32
4	Distance across open cam arms	2*5/8	4*5/16	5*3/16	7*5/32	7*5/32	7*13/16	9*15/16	9*15/16	11*1/32	12*1/32	16*1/4
5	Hose shank OD	19/32	27/32	1*1/16	1*11/32	1*11/32	2*1/16	3*3/32	3*3/32	4*3/32	5*3/32	6*1/1
