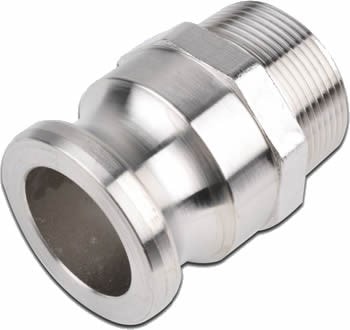

Stainless steel camlock Type F

Stainless Steel Type F adapters,male adaptor by male thread, fit into any female couplers including Type C, D, B & DC (Dust Cap). Quick hose camlock coupling can finish sealing in a snap without any requirement of tools. Stretch the arms of the coupler, and then insert the adapter into the coupler until contact with the gasket.The whole process of cam & groove connection will last several seconds. Available from 1/2" to 6" and 3/4" through 6" is interchangeable.

Feature:

• Keep lustrous appearance ever after long service.

• Ideal for food & sanitary conditions.

• Extremely high working temperature.

• Durability.

• No tools are needed.

Stainless Steel Coupling Operating Pressure

Sr.No	Size	Working Pressure
1	1/2"	150psi
2	3/4" to 2"	250psi
3	2*1/2"	225psi
4	3"	200psi
5	4",5"&6"	100psi

Stainless Steel Camlock Coupler F

Sr.no	Size(inch)	1/2	3/4	1	1*1/4	1*1/2	2	2*1/2	3	4	5	6
1	A-Overall length (inch)	2*1/8	2*1/8	2*9/16	3*7/32	3*1/8	3*5/8	4*7/16	4*17/32	4*15/16	-	4*15/16
2	B-Adapter length (inch)	1*1/16	1*1/16	1*5/16	1*9/16	1*5/8	1*7/8	1*15/16	2	2*1/16	-	2*1/4
3	C-Distance across flats (inch)	1	1*5/16	1*1/2	1*15/16	2*1/4	2*11/16	3*1/4	3*3/4	5	-	7*3/4
